Case Study, DIY - Kids Count Papakura

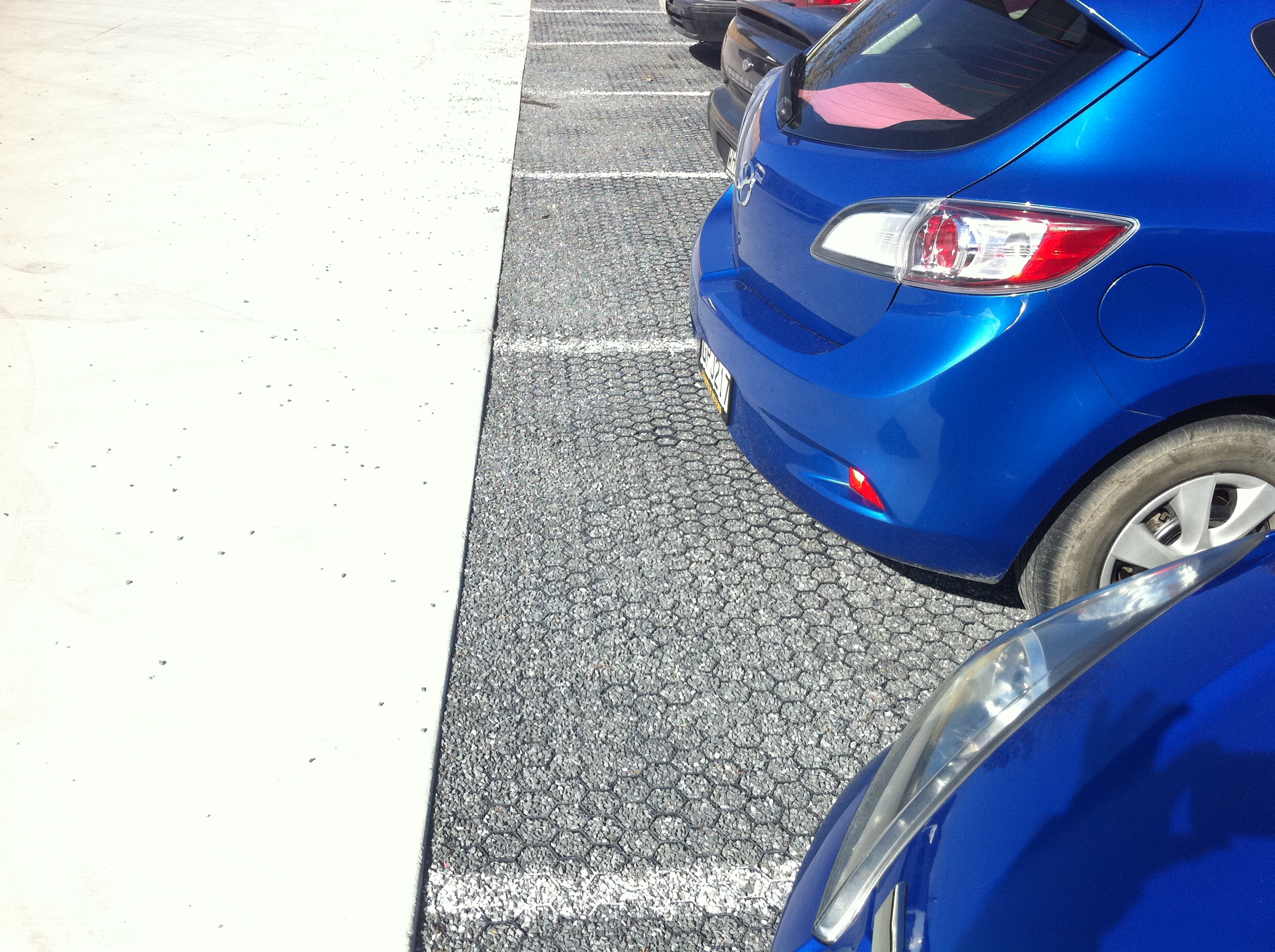

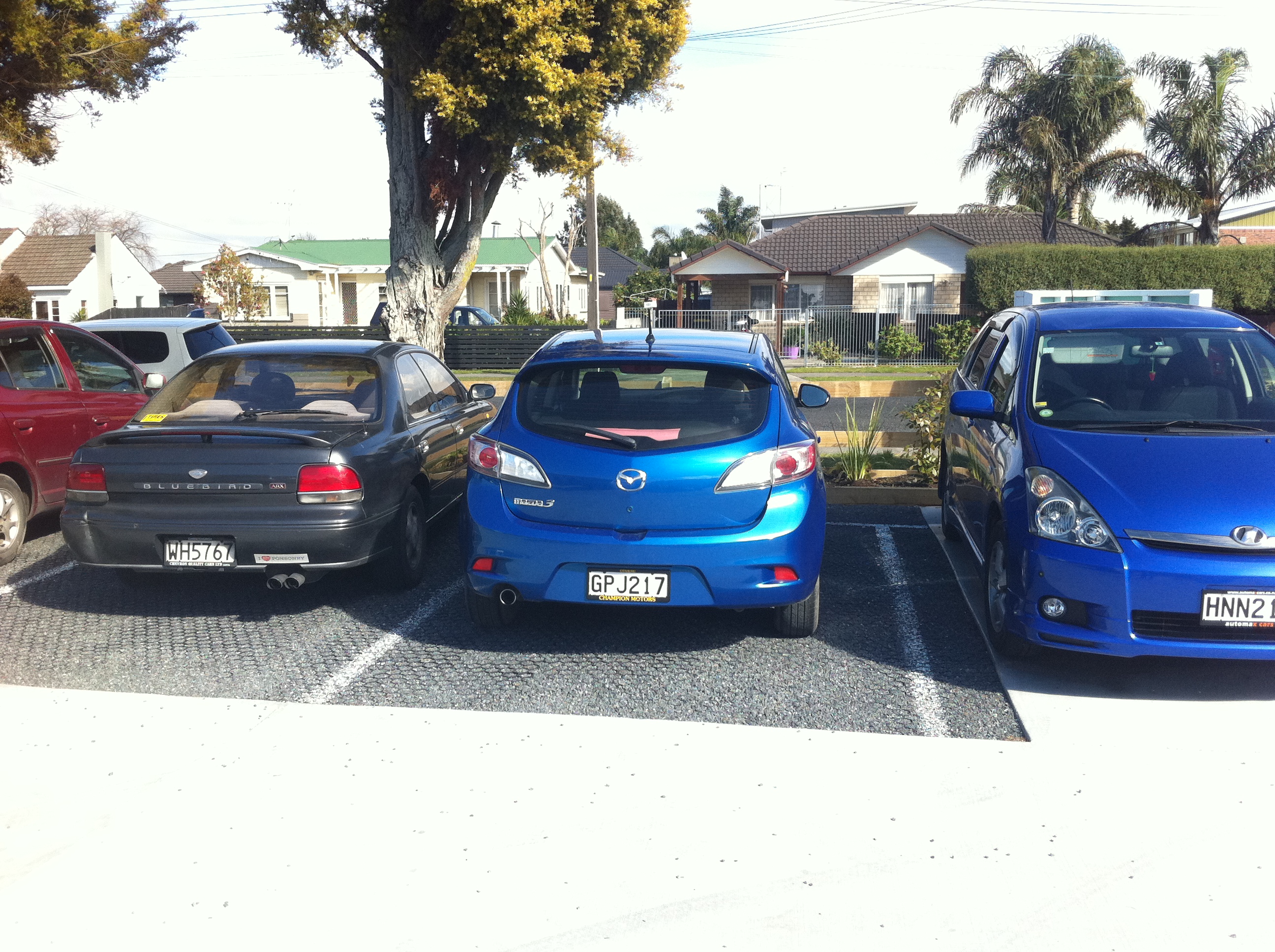

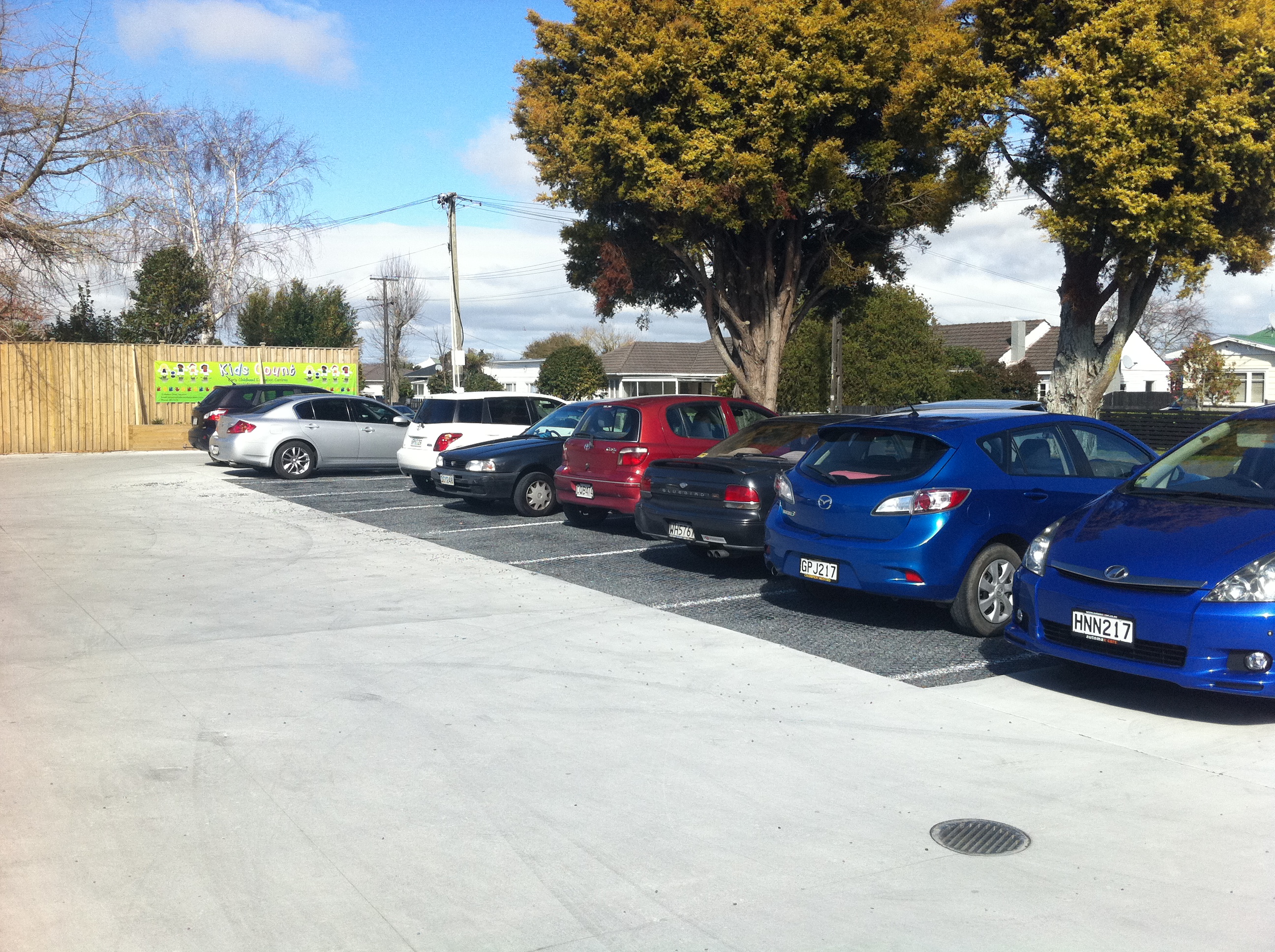

JakMat Geocell - Car Park Application at Kids Count Education in Papakura


BRIEF:

A) to visually break up the large concrete surface area comprising the parking and drop off space at the front of the child centre.


B) Allow for a permeable water surface at the edge of the parking area to assist in the preservation of two large trees.


CONTRACTOR: KJ Construction Ltd.





1. A GAP 40 was used as the base course material to a depth of 150mm. This was then compacted and rolled with a vibrating roller.



2. JakMatGeocell was laid and cut as required to the surrounding concrete pad.

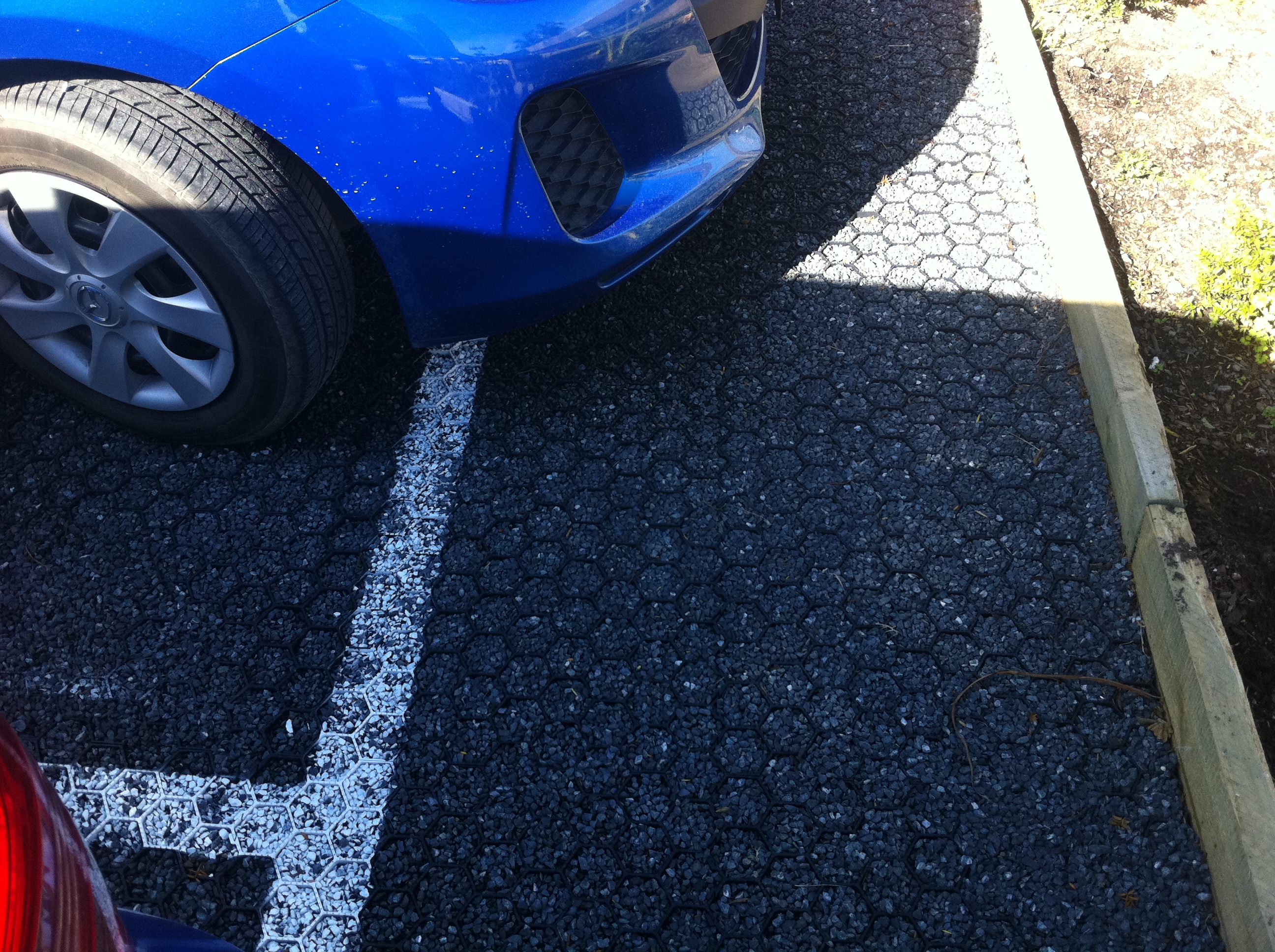

3. A 10mm pea metal was chosen as the fill of the JakMatGeocell.



4. Parking spaces lines were created with a paper template and general purpose white acrylic paint.




 Click to download case study

Previous Case Study

Next Case Study

Contact us to discuss how JakMat can work for you.
